Quartz Stone Rotary Kiln
Specifications：
Production capacity: 180-10000t/h
Weight: 149.61-1659t
Specifications: φ2.5×40-φ6.0×95
Application Range：quartz stone rotary kiln is mainly applied to contruction material, metallurgy, chemical industry, refractory materials and environmental protection.
Applicable Materials：
Low energy consumption
Our rotary kiln adopts reasonble running parameter; coal and electricity consumption can be 20% to 30% lower than common dryer.
High output capacity
Output capacity can be increased by more than 20%. Taida rotary kiln has been widely applied to mining and metallurgy industry.
With high automation level
The whole production line needs only one person to supervise. finished products can be directly packed and stored.
More durable
Service life can last for 8 to 10 years. with good maintenance, it can be used for longer time.
With less quick-wear parts.
Important parts adopt advanced thermal processing technology. Replace period can reach 5000 hours.
More environment friendly
Adopts multi-class dust collecting method, clean exhaust gas emission can totally meet national standard.

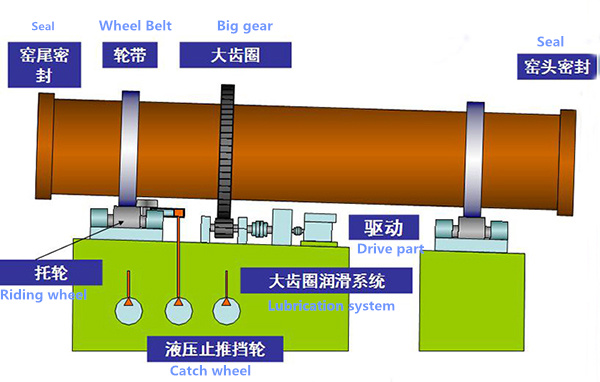

Working Principle
Generally, special features of equipment with many advantages are very obvious. What’s more, Taida rotary kiln equipment holds more functions. Here are summarization:
1.In terms of production capacity: because of high efficiency, it holds very high production capacity. This kind of rotary kiln can meet customer’s requirement and bring about much profit.
2. In terms of structure: after careful design, this kind of rotary kiln equipment holds higher configuration, more reasonable structure, higher automation level and more stable operation.
3. In terms of operation: Taida quartz stone rotary kiln holds wide application range. Characterized by simplification and convenience, this kind of equipment reduce operation difficulties and comprehensive utilization rate.
Latest Delivery
Project Case
Kaifeng 3TPD Kiln Production Line
Attracted by nonferrous rotary kiln manufactured by china famous rotary kiln supplier, Zhengzhou Taida, Kaifeng customer purchased a whole set of metallurgy rotary kiln calcining machine to fulfill final production aim. The picture shown above presents the real working condition of Taida lime rotary kiln.
Raw material: nonferrous metal
Output capacity：3T/D
10TPH Russia Gypsum Production Site
Gypsum with high moisture is sent to hopper. Then, gypsum will enter the feeding end of rotary kiln dryer. Under this situation, the inclination of feeding end will be larger than natural inclination of gypsum.then, gypsum will enter rotary kiln dryer smoothly. calcining rotary kiln is a rotary drum with certain inclination.
Raw material：Phosphaste gypsum
Output capacity：1-10T/H
Technical Parameters
|
Specifications (m) |
Dimension | Power (kw) | Total weight (t) | Notes | ||||
| Diameter (m) | Length (m) | Inclination (%) | Output (t/h) | Rotary speed (r/min) | ||||
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 | With vertical preheater |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 | ---- |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 204 | 0.48-1.45 | 55 | 196.29 | ---- |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 | ---- |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 400 | 0.437-2.18 | 55 | 201.58 | Decomposition outside the kiln |
| Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 | ---- |
| Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 | Decomposition outside the kiln |
| Φ3.0×60 | 3 | 60 | 3.5 | 300 | 0.3-2 | 100 | 310 | Bauxite calcining kiln |
| Φ3.2×50 | 3.2 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 | Decomposition outside the kiln |
| Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 | preheat decomposition |
| Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 | preheat decomposition |
| Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 | Residual heat power |
| Φ4.0×56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | 456 | preheat decomposition |
| Φ4.0×60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | 510 | preheat decomposition |
| Φ4.2×60 | 4.2 | 60 | 4 | 2750 | 0.4-3.98 | 375 | 633 | preheat decomposition |
| Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | 583 | preheat decomposition |
| Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 | preheat decomposition |
| Φ4.7×74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 | 849 | preheat decomposition |
| Φ4.8×74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 | 899 | preheat decomposition |
| Φ5.0×74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 | 944 | preheat decomposition |
| Φ5.6×87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 | 1265 | preheat decomposition |
| Φ6.0×95 | 6 | 95 | 4 | 10000 | Max5 | 950×2 | 1659 | preheat decomposition |
