External Heating Kiln

Electrical External Heating Rotary Kiln

    Electrical heating rotary kiln is a kind of indirect contact rotary kiln designed by Taeda Company For low temperature working condition, heating unit adopts heating tube installed sticking to kiln wall. For middle temperature working condition, heating unit adopts electric stove wire or plate tape to produce thermal radiation in heating chamber. Working temperature can reach 1100℃. Materials will be indirectly heated by electrical heating. Taeda electrical external heating rotary kiln can be precisely controlled and suitable for automatic and continuous production work.

    Application:Widely applied for chemical, new material, metallurgy, precious metal, rare earth and new energy industries.

    物料

  • Order online Hotline:18939509384
Advantage:

Calcining Time and Process Can be Adjusted

Taeda electrical external heating kiln is suitable for continuous production. Heat source adopts imported SSR Silicon controlled rectifier or power regulator. Temperature control can be precisely controlled. Calcining time and temperature can be flexibly adjusted based on specific process requirement.

Less Quick Wear Parts and Easy Maintain

Heating chamber adopts two-stage assembly design which provides convenience for maintenance and disassembly. Superior heating components holds longer service life. There are various layout mode available, parallel type, side-mounted type and drawer-type, easy to replace and less malfunction point. It is a representative for Taeda's effort for humanization design.

Closed Working System and No Pollution

Taeda electrical external heating furnace is indirect heating rotary furnace where materials move in inner tube. Indirect heat transfer and closed system causes no pollution to environment and prevents pollution caused to materials. It holds high recycling rate and causes less impurities to final product.

Automatic Control and Require Less Labor Force

Feeding silo and feeder adopt instant speed control so that to guarantee continuous operation. It adopts multiple-temperature and multiple pressure point supervision.  Blower, induced draft fan, protection gas openness and pressure can be automatically controlled. No need paper recording makes easy transition for working shifts.

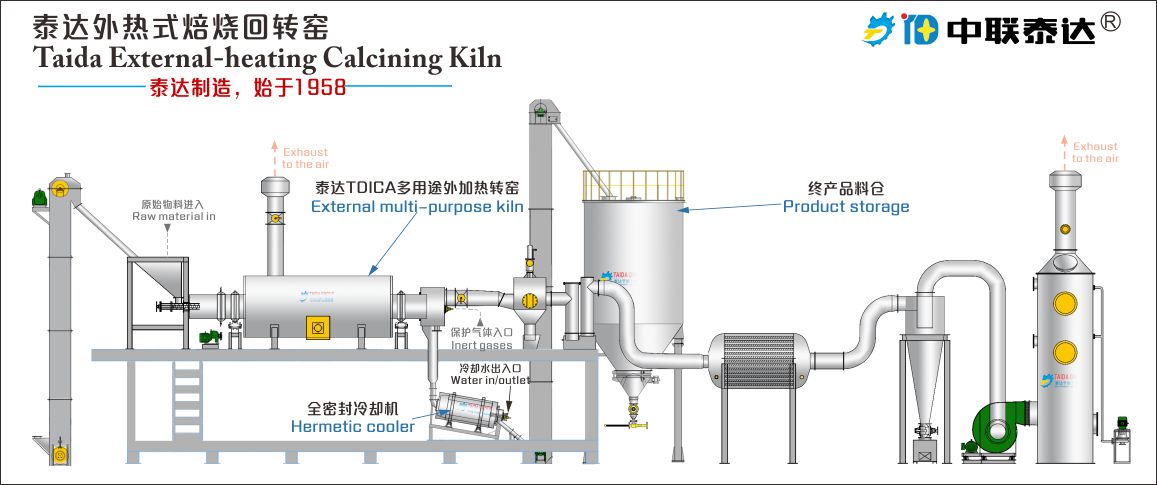

Working principle:


Delivery display:
 回转窑发货现场    回转窑发货现场    回转窑发货现场    回转窑发货现场
Project case:

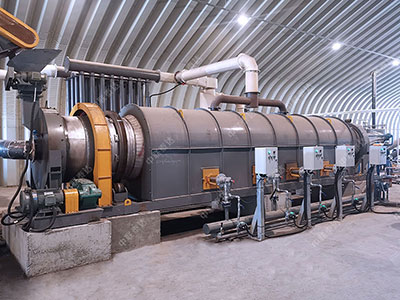

  • Korea New Material Calcining Kiln

    Korea New Material Calcining Kiln

    This new new magnetic powder calcining line adopts natural gas as heat source and with ±50℃ temperature control precision, which represent Taeda machine high standard and quality index.

    Raw material: Lithium iron phosphate
    Capacity:4t/h

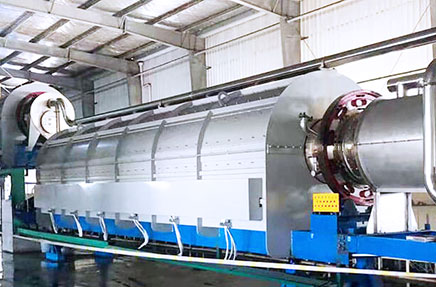

  • Shanxi Magnetic Powder Roasting Kiln

    Shanxi Magnetic Powder Roasting Kiln

    This new new magnetic powder calcining line adopts natural gas as heat source and with ±50℃ temperature control precision, which represent Taeda machine high standard and quality index.

    Raw material: Magnetic powder
    Capacity:5t/h

Working parameter:
TDICA-D0.30.40.60.81.01.21.5
Diameter(mm)ø257/273/300ø350/370/400ø500/600/624ø800ø940/1000ø1100/1200ø1500
Length(m)3-73-94-116-116-128-128-15
Rated temperature≤1100℃
Heating zone1-31-31-31-31-31-31-3
Heating power(kw)40-8070-120100-200120-260180-340200-400300-580
Power source380V 50HZ
Production capacity~80L/h120L/h200L/h300L/h700L/h1000L/h1500L/h

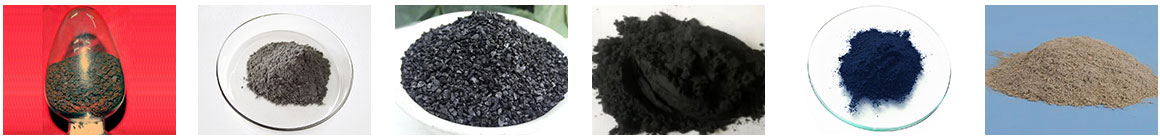

Applicable material:

Last:Gas External Heating Calcining Kiln Next:no more
