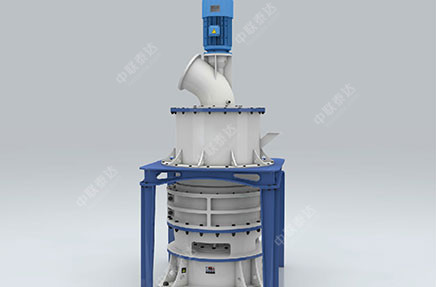

Raymond mill

Raymond mill


Applications: mainly applied to crushing kaolin, bentonite, limestone and relevant chemical raw materials;
Structure: spatial structure, covering less area, even granularities, stable transmission and reliable running;

Application Range:/UpFiles/Article/2010/10/11/thumb_2010101152444673.pdf

Applicable Materials:/UpFiles/Article/2010/10/11/thumb_2010101152454689.rar


discription of Raymond Grinding mill

Used for grinding the barite, limestone, kaolin, cerames, and slags below scale 9.3 of Mohs hardness and 280-odd sorts of non-inflammable and non-explosive stuff in the trades of mining, metallurgical industrial, chemical engineering and building material for high fine powder generation and processing

The product size is adjustable in the range of 80 to 325 (600 the largest) meshes

It is possible to product 30 to 80 mesh coarse powder through special device in the machine

Features of Raymond Grinding mill:

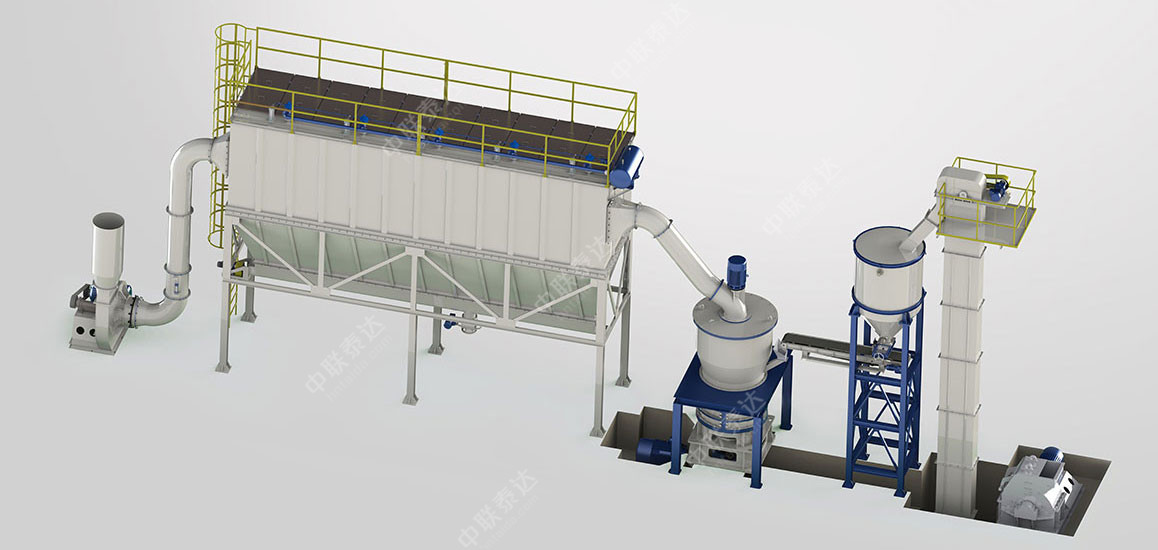

The whole plant is a vertical structure of strong systematic characteristic, so it occupies small area

From crushing of raw material to grinding and packing is an independent production system

Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach

Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably

Main parts of the whole plant are made from cast and steel of high quality

The technics is so subtly that insures the durability of whole plant

The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room

Working principle of Raymond Grinding mill:

In the main frame, a 100 to 1,500kg powered pressure spring is fixed to the roller suspender

After the grinder is put into effect, the roller rotates around the main shaft, and rolls closely against the ring pressed by the high pressure spring and centrifugal force

And its rolling pressure ration is 1.2 times higher than that of the Raymond grinder under the same power condition and the production output is raised to substantial degree

When a certain degree of wear of roller and ring is affected, it is recommended to adjust the length of the spring to maintain the constant pressure between the roller and the ring

As a result, the stable output and fineness are ensured


Working Principle

Latest Delivery

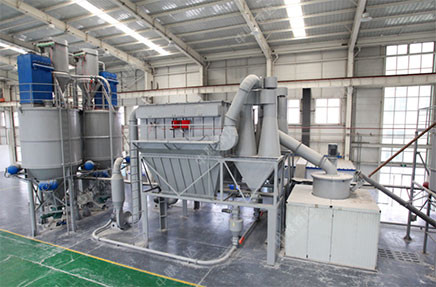

Project Case

Technical Parameters


6R4525 5R4119 4R3216 3R3016 4R3016 3R2715 4R2715 3R2615 3R2115 3R60
Particle size of feed (mm) <=30 <=25 <=25 <=25 <=20 <=20 <=15 <=15
Particle of finished product(mm) 0.125-0.044 0.125-0.044 0.125-0.044 0.125-0.044 0.125-0.044 0.125-0.044 0.125-0.044 0.125-0.044
shift output at different material fine degree 16-120 8-60 4-45 3-35 2-28 1.5-20 1-18 0.5-8
Rotate speed if sentral shaft (r/min) 82 105 130 160 160 160 180 280
Inner diameter of pulverzing ring (mm) 1620 1270 970 880 830(800) 780 650 410
Diameter of pulverzing roller(mm) 450 410 320 300 270 260 210 140
Height of pulverizing ring(mm) 250 190 160 160 150 150 150 100
Electrical machine of main frame y315m-4-32 y280s-4-75 y225s-4-37 y225m-8-30 y225m-8-22 y225s-8-18.5 y200L-8-15 y160m-6-7.5
Electrical machine of blower y315m-4-132 y250m-4-75 y200L-4-37 y180m-4-22 y160L-4-15 y160L-4-15 y160m-4-11 y132s-2-5.5
Electrical machine of analyzer y160m-4-11 yc200-4B-7.5 yc120-4A-5.5 y112m-6-2.2 y112m-6-2.2 y112m-6-2.2 y112m-6-2.2 y90L-6-1.1
