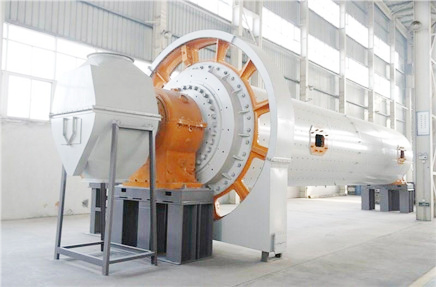

Energy Saving Ball Mill

Energy Saving Ball Mill

Specifications:

Applications: applied to cement, silica, new building materials, refractory materials, fertilizer and beneficiation industry;
Structure: feeding part, discharging part and rotary part;

Application Range:Widely used in building material, chemical industry, and more

Applicable Materials:Used for cement,silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and more

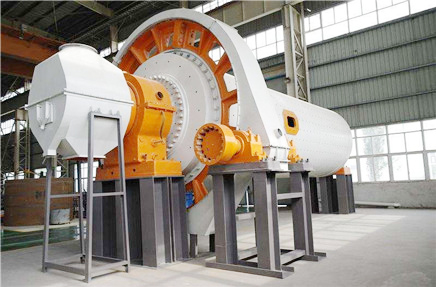

Advantages
Ball mill is mainly composed of feeding part, discharging part, rotary part, transmission part (reducer, opinion, motor and electrical control part). Hollow shaft adopts casting steel and lining plate is replaceable. Rotary large gear adopts casting steel rolling process. Rotary cylinder is lined with an-abrasion lining plate.
Energy-saving
with good combination of different parts, can greatly save energy consumption.

Flexible design of discharging part
reasonble design, customer can choose iron remover


Rotary part
main parts adopt good-quality components

Large capacity of feeding part
Reasonble design can improve input capacity


High grinding efficiency, good quality lining plate
Lining plate and grinding media adopts special material, adopt pollution free design.
Good seal performance to reduce dust emission
good structure design to reduce harm to people

Customer can choose either wet type ball mill or dry type ball mill according to raw material and discharging pattern.

Working Principle

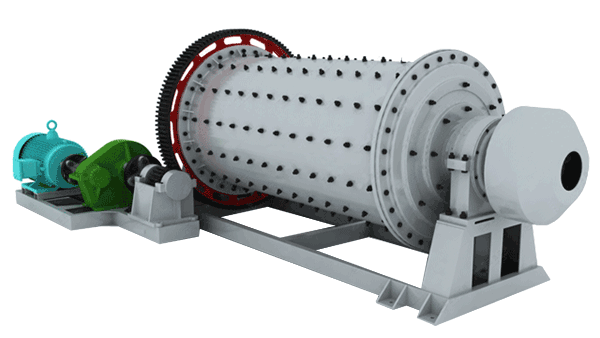

ball mill working principle

This machine is a horizontal cylindrical rotating device, external gear transmission, two warehouses, lattice ball mill. The material is uniformly fed into the first chamber of the mill by the feeding device through the hollow shaft of the feeding material. The chamber has stepped lining or corrugated lining, which is filled with steel balls of different specifications. The rotation of the cylinder generates centrifugal force to bring the steel ball to a certain height. After falling, it will hit and grind the material. After the material reaches the rough grinding in the first warehouse, it enters the second warehouse through the single-layer compartment board. The warehouse is provided with a flat lining plate with steel balls inside to further grind the material. The powder is discharged through the discharge raft to complete the grinding operation.

Latest Delivery

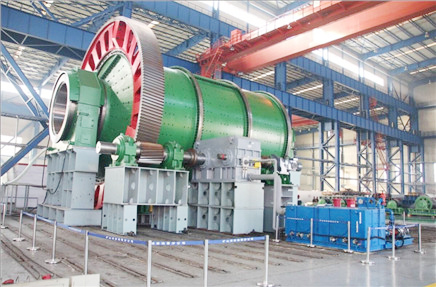

Project Case

Technical Parameters

Specifications Rpm
(r/min)
Grinding media
(t)
Inlet size
(mm)
Outlet size
(mm)
Capacity
(t/h)
Power
(kw)
Total weight
(t)
Ф900×1800 36-38 1.5 ≤20 0.075-0.89 0.65-2 18.5 5.85
Ф900×3000 36 2.7 ≤20 0.075-0.89 1.1-3.5 22 6.98
Ф1200×2400 36 3 ≤25 0.075-0.6 1.5-4.8 30 13.6
Ф1200×3000 36 3.5 ≤25 0.074-0.4 1.6-5 37 14.3
Ф1200×4500 32.4 5 ≤25 0.074-0.4 1.6-5.8 55 15.6
Ф1500×3000 29.7 7.5 ≤25 0.074-0.4 2-5 75 19.5
Ф1500×4500 27 11 ≤25 0.074-0.4 3-6 110 22
Ф1500×5700 28 12 ≤25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 ≤25 0.074-0.4 4-10 130 34.5
Ф1830×4500 25.4 15 ≤25 0.074-0.4 4.5-12 155 38
Ф1830×6400 24.1 21 ≤25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 ≤25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 ≤25 0.074-0.4 6.5-36 155 45
Ф2100×4500 23.7 24 ≤25 0.074-0.4 8-43 245 56
Ф2100×7000 23.7 26 ≤25 0.074-0.4 12-48 280 59.5
Ф2200×4500 21.5 27 ≤25 0.074-0.4 9-45 280 54.5
Ф2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380 61
Ф2200×7000 21.7 35 ≤25 0.074-0.4 15-28 380 62.5
Ф2200×7500 21.7 35 ≤25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 ≤25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 ≤25 0.074-0.4 8.5-60 320 72
Ф2700×4000 20.7 40 ≤25 0.074-0.4 22-80 380 95
Ф2700×4500 20.7 48 ≤25 0.074-0.4 26-90 480 102
Ф3200×4500 18 65 ≤25 0.074-0.4 Depends on process 630 149
Ф3600×4500 17 90 ≤25 0.074-0.4 Depends on process 850 169
Ф3600×6000 17 110 ≤25 0.074-0.4 Depends on process 1250 198
Ф3600×8500 18 131 ≤25 0.074-0.4 45.8-256 1800 260
Ф4000×5000 16.9 121 ≤25 0.074-0.4 45-208 1500 230
Ф4000×6000 16.9 146 ≤25 0.074-0.4 65-248 1600 242
Ф4000×6700 16.9 149 ≤25 0.074-0.4 75-252 1800 249
Ф4500×6400 15.6 172 ≤25 0.074-0.4 84-306 2000 280
Ф5030×6400 14.4 216 ≤25 0.074-0.4 98-386 2500 320
Ф5030×8300 14.4 266 ≤25 0.074-0.4 118-500 3300 403
Ф5500×8500 13.8 338 ≤25 0.074-0.4 148-615 4500 525
