Hazardous waste rotary kiln is used to dispose and calcine hazardous wastes and reach harmless/amount reduction and recycling aim of hazardous wastes. High temperature incineration is an effective method for disposing hazardous wastes. Rotary kiln is most direct equipment in hazardous wastes disposal.
Application：Suitable for calcination of solid particles separated from hazardous waste, sludge waste, oil sludge waste, industrial waste, PVC material, domestic waste, semi-solid waste, organic waste, inorganic waste, waste water and waste gas.
Adopt anti-resistant and heat-resistant materials from Japan, Sweden and USA to forge core component.
Equipped with special structure, there is no dust leak. Solid waste can be colletively recycled and used as resources.
Optimized calcining working principle makes thermal efficiency improved by about 30%, which helps customers save much cost for fuel.

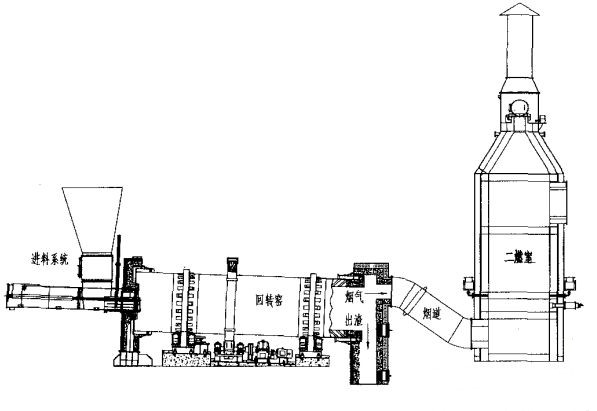

In terms of material flow: Through kiln body rotation, hazardous waste is evenly mixed and moved to the lower end along the inclination angle in boiling status. In order to achieve complete incineration of waste, a secondary combustion chamber is always provided. Its special structure enables several heat transfer forms to complete the process of garbage drying, volatilization analysis, garbage ignition until burning out. Complete incineration is finished in secondary combustion chamber.
In terms of heat conduction: most of the waste materials in Zhengzhou Taida hazardous waste rotary kiln are heated by high temperature gas generated in the fuel process and the heat transmitted by the kiln wall. Meanwhile, spontaneous combustion of hazardous waste will also generate a certain amount of heat. After entering incinerator, solid waste materials will be heated first by auxliary burner's flame and heat radiation kiln wall to complete the process of heating, moisture evaporation, combustion and thermal desorption.
Jinan Lime Kiln Production Line
Attracted by lime rotary kiln manufactured by Zhengzhou Taida, Jinan customer purchased a whole set of lime rotary kiln calcining machine to fulfill final production aim.
Raw material: Lime
Output capacity：350t/d
10TPH Russia Gypsum Production Site
Gypsum for is with high moisture. For guaranteeing smooth feeding, there is a certain inclination of feeding end for gypsum kiln. Whole line contains burner, rotary kiln and exhaust disposal.
Raw material：Phosphaste gypsum
Output capacity：1-10T/H
| Capacity | Power/kw | Area/m2 | Notes | ||
| Running power | Installed power | Core equipment地 | Whole system | ||
| 10t/d | 17.5 | 30 | 20 | 90-125 | Provide whole set technical and product service. |
| 20t/d | 22.5 | 40 | 24 | 125-175 | |
| 50t/d | 30 | 50 | 32 | 175-300 | |
| 100t/d | 45 | 70 | 48 | 300-400 | |
| 150t/d | 55 | 90 | 60 | 350-450 | |
