Rotary Kiln

Rotary Kiln

    Main function of rotary kiln is calcination, so it is also called calcining kiln. Rotary kiln is widely used in metallurgy, machinery, building materials, mining and other fields. With wide application range, it can be used to calcining various metal ores, non-metal ores, non-ferrous metals and ferrous metals. Rotary kilns provided by Taeda have advantages of excellent performance, multiple functions and outstanding features.

    Application:Mainly used in building materials, chemicals, refractory materials, environmental protection, metallurgy, steel, non-ferrous metals, new materials and many other production industries.


  • Order online Hotline:18939509384

1、Optimally designed calcination working principle makes Taeda's new rotary kiln high-yield and efficient. Working efficiency is correspondingly improved, and production capacity is 1.5 times that of previous generation of rotary kiln equipment.

2、Rotary kiln produced by Taeda has high degree of automation, stable operation and stable working condition, which reduces difficulty of operation.

3、Core components are made of wear-resistant and high-temperature-resistant materials from Japan, Sweden, the United States and other international materials, so that quality of the rotary kiln is more guaranteed and it has won the satisfaction and recognition of a large number of users.

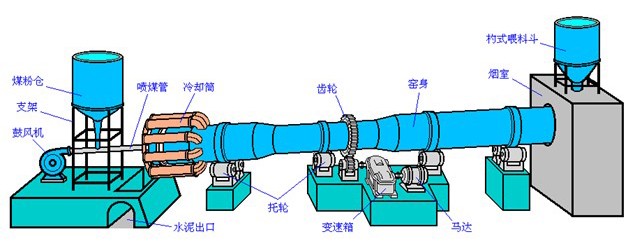

Working principle:

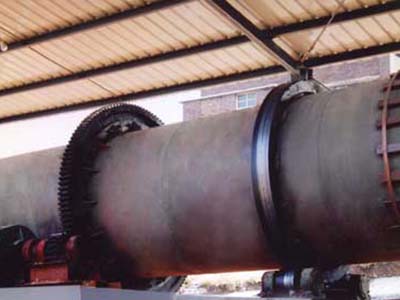

Major structure of rotary kiln mainly contains three parts:


1. Kiln shell: it is major body of rotary kiln and we can see from outside.

2. Tire ring: it is major composition of rotary kiln and can also be seen from outside. It is mainly used for fixing and supporting kiln shell.

3. Thrust roller: thrust roller is limit switch which regulate up and down movement of kiln. Because support roller is wider than kiln tire, in order to guarantee riding wheel and tire wheel belt can move up and down and uniform abrasion, there is thrust roller set on end face of tire ring.

Working Process:

Material is fed into rotary kiln through sliding chute at end of the kiln. Due to the inclination and slow rotation of cylinder, material rolls along the circumference and moves from kiln tail to kiln head along axial direction. After being preheated, decomposed, calcined and other processes in the kiln, later product will be produced. Then, calcined materials will enters cooler from lower part of kiln head device. Fuel like gas or coal powder is injected into kiln through burner. Heat is transferred to material by means of flame radiation and hot gas convection. Heat heats material so that material is calcined into finished product.

Delivery display:
 回转窑发货现场    回转窑发货现场    回转窑发货现场    回转窑发货现场

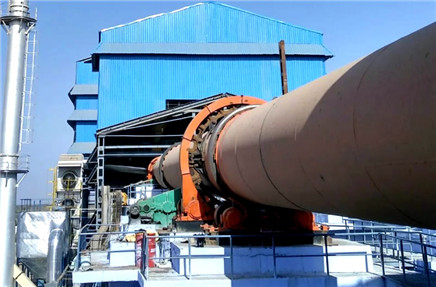

Project case:
  • 回转窑生产现场

    Jinan Lime Kiln Production Line

    Attracted by lime rotary kiln manufactured by Zhengzhou Taida, Jinan customer purchased a whole set of lime rotary kiln calcining machine to fulfill final production aim.

    Raw material: Lime
    Output capacity:350t/d

  • 回转窑生产现场

    10TPH Russia Gypsum Production Site

    Gypsum for is with high moisture. For guaranteeing smooth feeding, there is a certain inclination of feeding end for gypsum kiln. Whole line contains burner, rotary kiln and exhaust disposal.

    Raw material:Phosphaste gypsum
    Output capacity:1-10T/H

Working parameter:
Model(m)Dimension Power(kw)Weight(t)
Applicable material:
