Rotary Kiln

Rotary Cooler

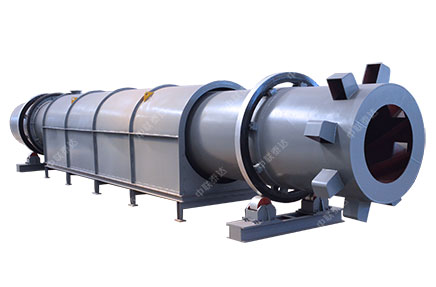

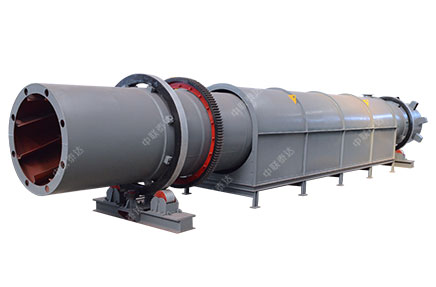

    Single drum cooler is a component for temperature condition of rotary kiln. During operation, materials (1000 to 1200℃) from rotary kiln can exchange heat during drum rotation and temperature of calcined materials can be reduced to lower than 200℃. Meanwhile, quality and abrasion resistance of calcined materials get improved. After cooling materials, all air will enter kiln for secondary circulating so that to improve kiln working efficiency.

    Application:Widely used in high hardness materials, non-metallic minerals, chemicals, food, medicine and metal materials.

    物料

  • Order online Hotline:18939509384
Advantage:
  • 1G53I2L-1.jpg

    High Thermal Efficiency and Running Rate

    Taeda single drum rotary cooler is easy to maintain and repair. All air after cooling materials will enter kiln as secondary circulating air, which improves kiln's working efficiency and calcining effect.

  • 1G53L3S-0.jpg

    Simple Structure and Good Product Quality

    Calcined materials (1000 to 1200℃)from rotary kiln will fully exchange heat with air along with drum rotation. Materials will be cooled down to lower than 200℃. Meanwhile, quality and abrasion resistance of calcined materials will be improved.

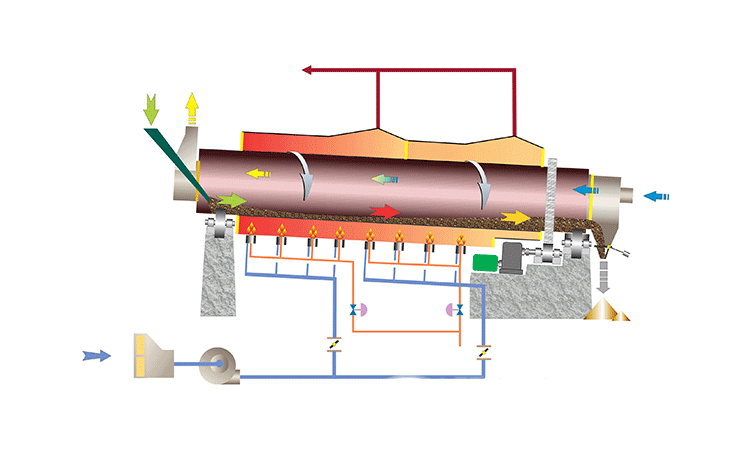

Working principle:


Delivery display:
 回转窑发货现场    回转窑发货现场    回转窑发货现场    回转窑发货现场
Project case:
  • 回转窑生产现场

    Jinan Lime Kiln Production Line

    Attracted by lime rotary kiln manufactured by Zhengzhou Taida, Jinan customer purchased a whole set of lime rotary kiln calcining machine to fulfill final production aim.

    Raw material: Lime
    Output capacity:350t/d

  • 回转窑生产现场

    10TPH Russia Gypsum Production Site

    Gypsum for is with high moisture. For guaranteeing smooth feeding, there is a certain inclination of feeding end for gypsum kiln. Whole line contains burner, rotary kiln and exhaust disposal.

    Raw material:Phosphaste gypsum
    Output capacity:1-10T/H

Working parameter:
Model

Capacity(t/h)

Rpm(r/min)Motor

Power

(kw)

Gearbox

Weight

(t)


TDLQø1.2×12

1.9-2.5

4.5

Y160L-6

11

ZQ50

16

TDLQø1.5×15

4-6

4.5

Y200L1-6

18.5

ZQ65

21.9

TDLQø2×20

7-8

3.5

Y225M-6

30

ZL75

61

TDLQø2.2×22

10-11.5

3.5

Y225M-6

30

ZL75

88

TDLQø2.5×25

11-15

3.5

Y280S-6

45

ZL100

108

TDLQø2.8×28

14-17

3.5

Y280M1-6

55

ZL100

130

TDLQø3×30

16-20

3.5

YS2-355M1-6

112

ZL115

156

TDLQø3.5×36

50-60

3.2

YR315M1-6

132

TH450C

285


Applicable material:

Welcome to leave a message for more information!
