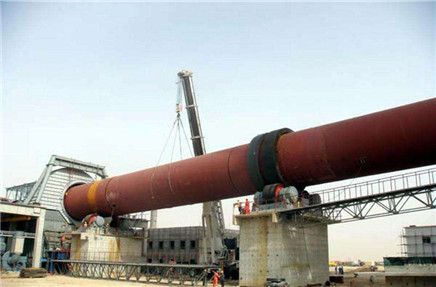

Cement rotary kiln produced at present is mainly matched with dry and wet method production of cement clinker. Diameter of Taeda cement kiln ranges from φ2500 to φ4800mm and capacity ranges from 1000 to 5000t/day.
Application：mainly used for cement, new construction material production and refractory material industries. Cement kiln is major equipment used in cement production line.
Superior Texture Guarantees Quality
Core component are made from abrasion-resistant and heat-resistant material from Japan, Sweden and America.
Conform to High Standard Environment Protection Demand
Special structure equipped effectively reduce dust leak. Dry powder can be collected centralized and utilized comprehensively.
Thermal Efficiency Got Improved
Optimized calcining principle design improves 30% of thermal efficiency and save cost for customer.
Exhaust Gas Emission Up to Standard
Reasonable exhaust gas emission process is up to national standard.
Jinan Lime Kiln Production Line
Attracted by lime rotary kiln manufactured by Zhengzhou Taida, Jinan customer purchased a whole set of lime rotary kiln calcining machine to fulfill final production aim.
Raw material: Lime
Output capacity：350t/d

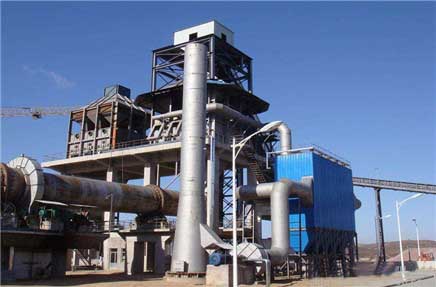

10TPH Russia Gypsum Production Site

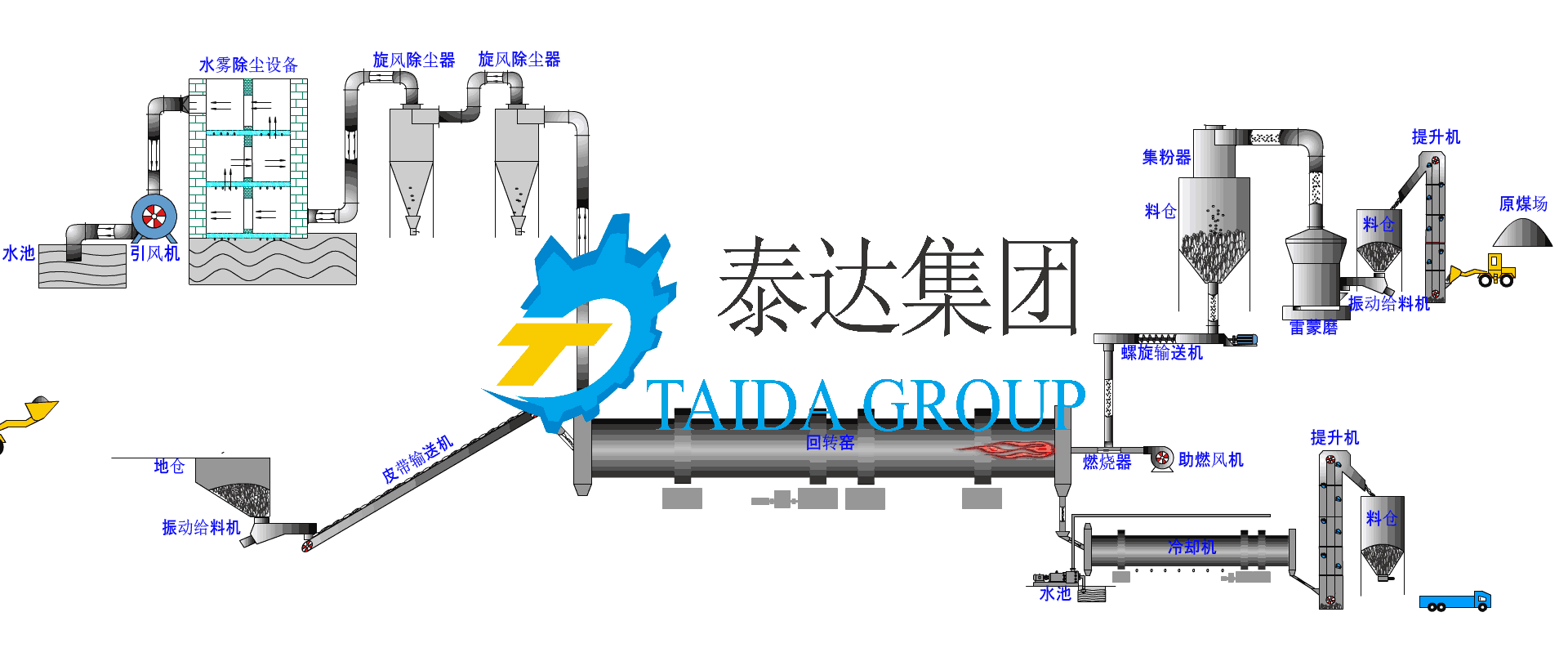

Gypsum for is with high moisture. For guaranteeing smooth feeding, there is a certain inclination of feeding end for gypsum kiln. Whole line contains burner, rotary kiln and exhaust disposal.
Raw material：Phosphaste gypsum
Output capacity：1-10T/H
Model | φ3.2×48 | φ3.2×50 | φ3.3×52 | φ4×60 | φ4.2×60 |
Capacity(t/d) | 1000 | 1100 | 1200 | 2500 | 2800 |
Slope(%) | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
Catch wheel No. | 3 | 3 | 3 | 3 | 3 |
Kiln motor(kW) | 160 | 190 | 190 | 315 | 420 |
Auxiliary transmission(kW) | 22 | 22 | 22 | 30 | 37 |
Weight(t) | 252 | 263 | 280.8 | 487.5 | 576.1 |
Model | φ4.3×62 | φ4.3×64 | φ4.5×66 | φ4.7×72 | φ4.8×70 |
Capacity(t/d) | 3000 | 3200 | 4000 | 4500 | 4800 |
Slope(%) | 3.5 | 4 | 3.5 | 4 | 3.5 |
Catch wheel No. | 3 | 3 | 3 | 3 | 3 |
Kiln motor(kW) | 420 | 450 | 560 | 560 | 630 |
Auxiliary transmission(kW) | 37 | 37 | 55 | 75 | 75 |
Weight(t) | 582.5 | 591 | 710.4 | 825 | 845.3 |
