Rotary Kiln

Magnesium rotary Kiln

    Production process of magnesium oxide rotary kiln is relatively simple. It is always used to complete sintering and calcining procedure in magnesium processing. As core production equipment, Taeda magnesium oxide rotary kiln holds 180 to 1000t/d. It is featured in high calcining temperature, strong strength and large capacity. It can be used to improve quality of semi-finished magnesium oxide and ensure full utilization of its raw materials.


    Application:mainly used for metallurgy, chemical industry, construction, refractory material, environment protection and new material field.

    物料

  • Order online Hotline:18939509384
Advantage:
  • Superior Texture Guarantees Quality

    Taeda magnesium kiln adopts abrasion-resistant and temperature-resistant material imported from Japan, Sweden and USA to forge core components.

  • Processional Manufacturer With Rich Experience

    As professional rotary kiln manufacturer, if you have demand for dolomite and magnesium oxide rotary kiln, please feel free to contact.


  • High Thermal Utilization Rate

    Optimized calcining process makes thermal utlization rate improve by 30%. With high thermal transfer rate, Taeda rotary kiln helps you save cost.

  • Flue Gas Emission Up To Standard

    Reasonable flue gas exhaust process guarantees flue gas emission up to national standard.

Working principle:


After entering magnesium rotary kiln, materials can be rapidly decomposed in few seconds. Whole calcining process is done evenly. There is no raw burning and over-burning. Calcining temperature can be accurately controlled. Pulverized powder material or mud cake magnesite are fed from feeder to rotary dryer or preheating. Exhaust heat produced by magnesite decomposing  will be used as heat source for above-mentioned dryer. After drying, dried magnesia ore is sent to calciner for calcination and the decomposed magnesium oxide (light-burned magnesium) is discharged from discharge port. Taida is a professional manufacturer of rotary kilns. If you need dolomite/magnesium oxide rotary kiln calcining equipment, please feel free to contact us!

Delivery display:
 回转窑发货现场    回转窑发货现场    回转窑发货现场    回转窑发货现场

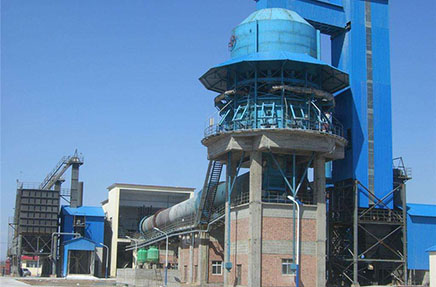

Project case:
  • 回转窑生产现场

    Jinan Lime Kiln Production Line

    Attracted by lime rotary kiln manufactured by Zhengzhou Taida, Jinan customer purchased a whole set of lime rotary kiln calcining machine to fulfill final production aim.

    Raw material: Lime
    Output capacity:350t/d

  • 回转窑生产现场

    10TPH Russia Gypsum Production Site

    Gypsum for is with high moisture. For guaranteeing smooth feeding, there is a certain inclination of feeding end for gypsum kiln. Whole line contains burner, rotary kiln and exhaust disposal.

    Raw material:Phosphaste gypsum
    Output capacity:1-10T/H

Working parameter:
Specification(m)Rotary Kiln ParameterGearboxMotor
Rpm(r/min)Slope(%)Capacity(t/h)ModelPower(KW)
Ø1.6×32m0.58-2.8542ZQ75-5018.5
Ø1.6/1.9×36m0.53-1.5942.5-3ZQ110-722
Ø1.9×39m0.53-1.5943-3.4ZQ125-737
Ø2.2×45m0.214-1.643.54-5Main drive:ZS125-545
Auxiliary drive:ZQ40-404
Ø2.5×50m0.62-1.53.55-6Main drive:ZS165-555
Auxiliary drive:ZS50-17.5
Ø2.5×55m0.62-1.53.55-6Main drive:ZS165-555
Auxiliary drive:ZS50-17.5
Ø2.8×55m0.62-1.53.56-7Main drive:ZS165-575
Auxiliary drive:ZS50-111
Ø3.0×60m0.5-1.53.57-9Main drive:ZS165-3125
Auxiliary drive:ZS50-111
Ø3.2×64m0.4-1.53.58-10Main drive:ZS130-16190
Auxiliary drive:Zl50-122
Ø3.5×70m0.4-1.53.512-14Main drive:ZSY500-40280
Auxiliary drive:Zl50-1422
Ø4.0×80m0.4-1.53.516-20Main drive:ZLY630-35.5355
Auxiliary drive:ZSY280-35.530

Applicable material:
