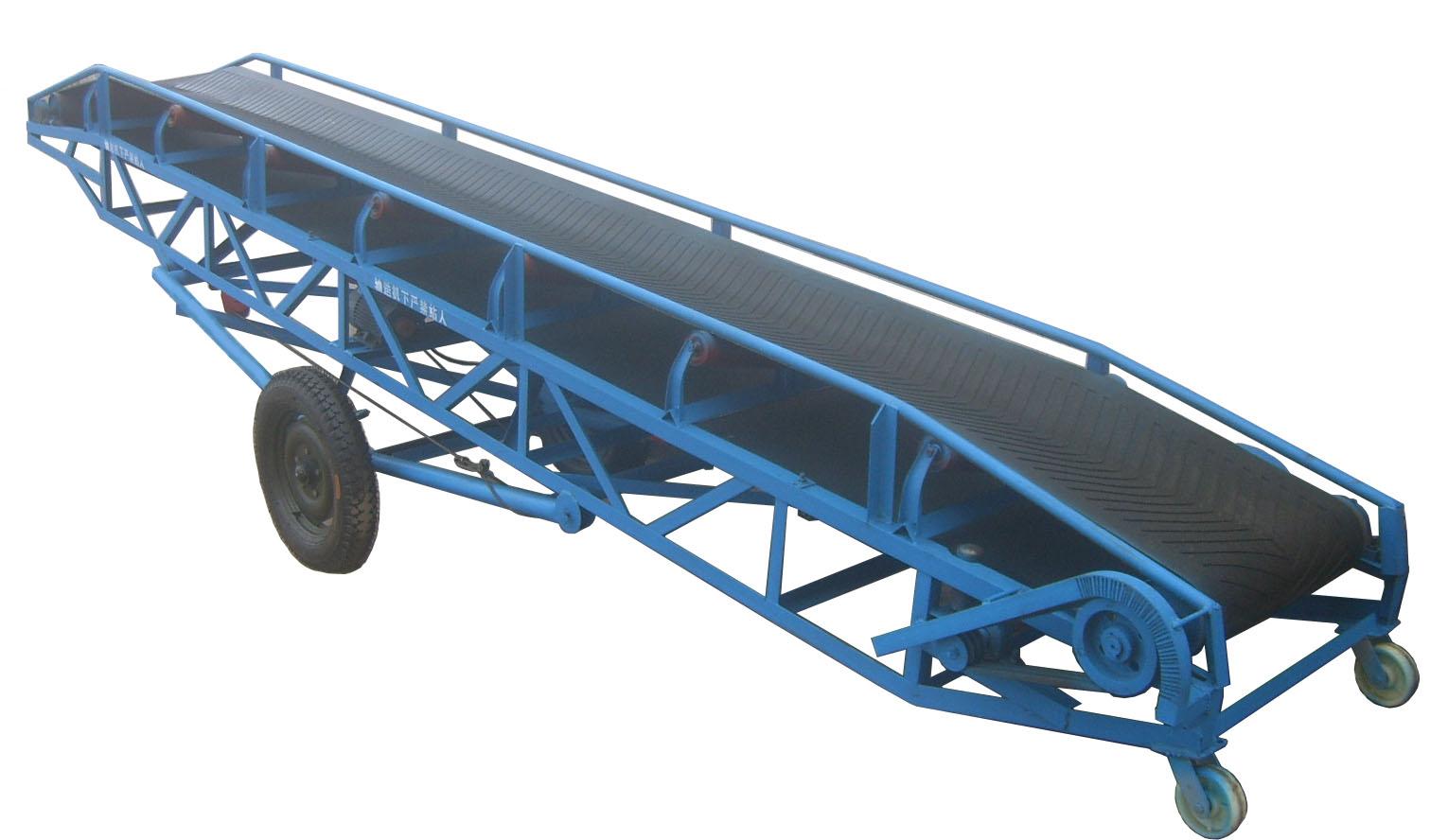

Belt Conveyor
Specifications：
Applications: mainly applied to mining, metallurgy, chemical industry, forging and building industry;
Advantages: high production capacity, reliable running, less resistance and reducing manufacturing cost;
Application Range：/UpFiles/Article/2010/10/12/thumb_2010101236280533.pdf
Applicable Materials：/UpFiles/Article/2010/10/12/thumb_2010101236288797.rar
Advantages: large delivery capacity, simple structure, convenient maintenance and standardized components
Widely used in the fields such as mining, metallurgy and coal to convey in compact materials or the end product materials
Meets different layout operating line demands
Materials can be conveyed by single machine, several machines, or even combination with other conveying facilities
Working temperature: -20 and 40°C
Temperature of materials to convey should be below 50°C
Working Principle
Latest Delivery
Project Case
Technical Parameters
|
Belt width (mm) |
Length(m) Power(Kw) | Speed(m/S) | Capacity (t/h) | ||
| 400 | ≤12/2.2 | 12-20/2.2-4 | 20-25/3.5-7.5 | 1.25-2.0 | 30-60 |
| 500 | ≤12/3 | 12-20/3-5.5 | 30-30/5.5-7.5 | 1.25-2.0 | 40-80 |
| 650 | ≤12/4 | 12-20/4-5.5 | 20-30/5.5-11 | 1.25-2.0 | 80-120 |
| 800 | ≤6/4 | 10-15/4-5.5 | 15-30/5.5-15 | 1.25-2.0 | 120-200 |
| 1000 | ≤10/5.5 | 10-20/5.5-11 | 20-40/11-22 | 1.25-2.0 | 200-320 |
| 1200 | ≤10/7.5 | 10-20/7.5-15 | 20-40/15-30 | 1.25-2.0 | 320-480 |
