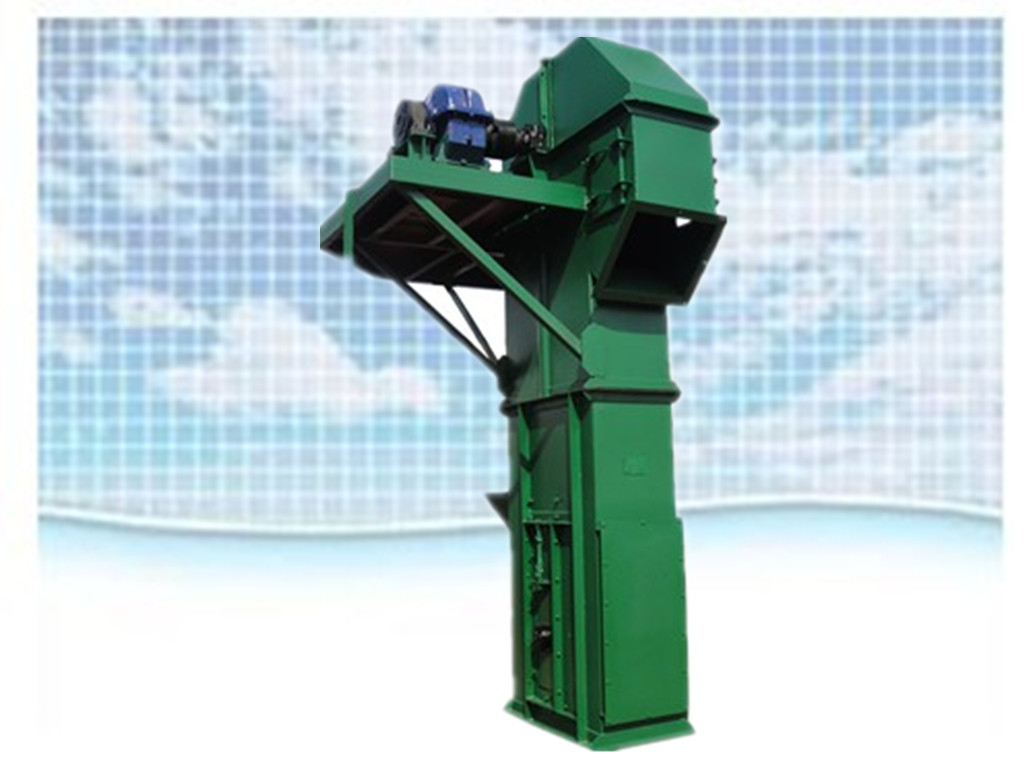

Bucket elevator
Specifications：
Types: ring chain, plate chain and belt elevator;
Introduction: conveying materials in a vertical direction;
Advantages: less power consumption, low noise and long service span;
Application Range：/UpFiles/Article/2010/10/13/thumb_2010101333459251.pdf
Applicable Materials：/UpFiles/Article/2010/10/13/thumb_2010101333472423.rar
Machine has the advantages of big conveying capacity, high hoisting height, stable and reliable running and long service life
Performance and parameter are in accord with JB3926-85 vertical bucket elevator, which consults the international standard and advanced foreign standard and the towing circle chain is in accord with MT36-80 high-strength circle chain for mine
Applicable for conveying the powder, grain and block materials, such as coal, cement, block, sand, clay and ore
Bucket elevator is allowed to convey materials with high temperature when armed with special circle chain structure
Working Principle
Latest Delivery
Project Case
Technical Parameters
|
Model |
GX150 | GX160 | GX200 | GX250 | GX300 | GX400 | GX500 | GX600 |
| Screw Diameter(mm) | 150 | 160 | 200 | 250 | 300 | 400 | 500 | 600 |
| Screw Distance(mm) | 120 | 150 | 160 | 200 | 240 | 320 | 400 | 480 |
| Screw shaft speed(r/min) | 120 | 120 | 100 | 90 | 80 | 71 | 63 | 50 |
| Power | 0.55-100KW | |||||||
| Teducer | ZQ250-ZQ850 | |||||||
| Transmission capacity(m3/h) | 4.5 | 6.5 | 8.5 | 16.5 | 32.5 | 54 | 79 | 139 |
| Transmission Length (m) | ≤70 | |||||||
| slope | ≤15° | |||||||
