Coal Slime Rotary Dryer
Specifications：
Coal slime dryer is specially designed for high humidity and high adhesive materials. Wet slime are sent into scattered equipment via ribbon conveyor, The massive coal slime after scattering are sent into drying chamber dryer of negative pressure to be dried.
Application Range：construction material,chemical industry, casting indusry, mining and metallurgy industries.
Applicable Materials： slime, raw coal, peat, flotation concentrate, mixed coal, tailings and other materials in coal industry.
1. Coal slime dryer or sludge dryer has strong anti-overload capability, low fuel consumption and low drying costs.
2. The new feeding and discharging devices can prevent phenomenon of clogging of the feed drum dryer, discontinuous and uneven feeding and return products, alleviating the load of the exhaust system.
3. Adopt parallel flow drying, raising thermal efficiency.
4. Particle size and moisture of materials are convertible for various requirements of customers. The water content of the finished products reaches as low as 8% and the particle sizes are controlled under 8mm.
5. The use of adjustable center bracket wheel greatly reduces wear and energy loss.
6. Coal slime dryer or sludge dryer achieves a “zero thrust” which greatly reduces the wear of roller block, ensuring smooth and reliable operation of cylinder.
Working Principle
Firstly wet slime is sent into the scattering equipment via ribbon conveyor. Then the massive coal slime after being scattered is sent into the drying chamber which is under negative pressure. Afterwards, the materials go through the material guide, cleaning, low-temperature drying and discharge zones. The exhaust gas is drained after removing the dust. Finally, the finished products are transported into the warehouse.

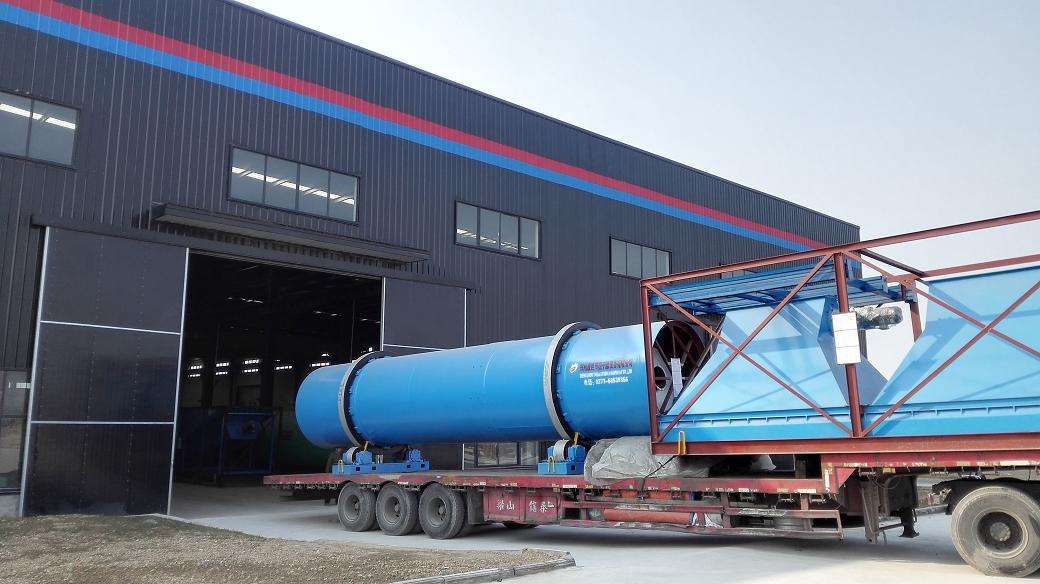

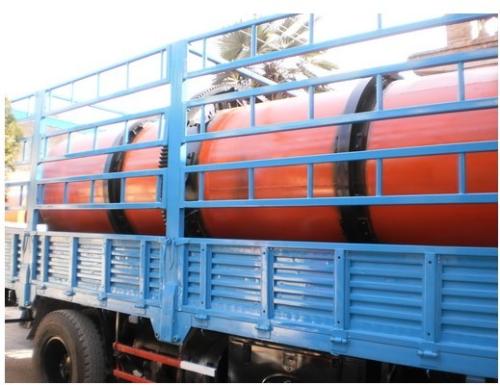

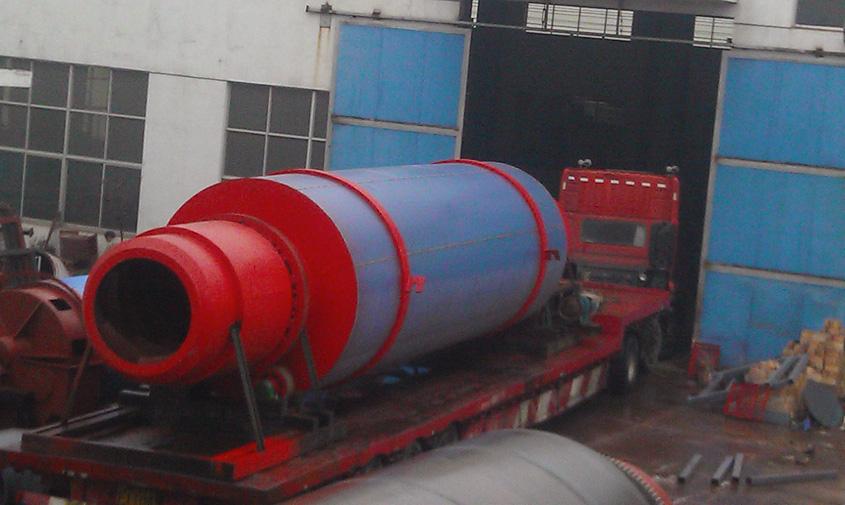

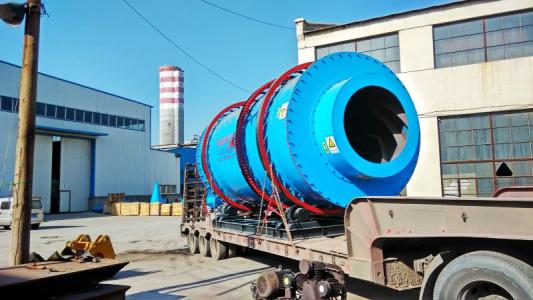

Latest Delivery
Project Case
Henan 10TPH Dry Mortar Production Line
Attracted by triple-pass dryer manufactured by china famous rotary kiln manufacturer, Zhengzhou Taida, Henan construction material customer purchased a whole set of silica sand triple-pass dryer to fulfill final production aim. The picture shown above presents the real working condition of Taida lime rotary kiln.
Raw material: dry mortar
Output capacity：10T/H
20TPD Qatar Sand Production Site
Energy-saving triple-pass dryer is suitable to deal with various mineral materials such as silica, sand, ore poweder and etc. Although the moisture of sand is not high, it is difficult to reduce the inner water in it. Based on customer's real situation, we customized a whole set of sand triple-pass drying system. After arriving, we arrange professional engineer to guide installation for customer.
Raw material：sand
Output capacity：20T/D
Technical Parameters
| Model（mm） | Inclination （%） | Rotary speed（r/min) | Max inlet temperature （℃） | Power （KW） | Capacity （t/h） |
| TDMGT600 | 3—5 | 3—8 | ≤850 | 3 | Capacity will be differetn for different materials. |
| TDMGT800 | 3—5 | 3—8 | ≤850 | 4 | |
| TDMGT1000 | 3—5 | 3—8 | ≤850 | 5.5 | |
| TDMGT1200 | 3—5 | 3—8 | ≤850 | 11 | |
| TDMGT1500 | 3—5 | 3—8 | ≤850 | 15 | |
| TDMGT1800 | 3—5 | 3—8 | ≤850 | 18.5 | |
| TDMGT2000 | 3—5 | 3—8 | ≤850 | 22 | |
| TDMGT2200 | 3—5 | 3—8 | ≤850 | 30 | |
| TDMGT2400 | 3—5 | 3—5 | ≤850 | 37 | |
| TDMGT2600 | 3—5 | 3—5 | ≤850 | 40 | |
| TDMGT2800 | 3—5 | 3—5 | ≤850 | 55 | |
| TDMGT3000 | 3—5 | 3—5 | ≤850 | 75 | |
| TDMGT3200 | 3—5 | 3—5 | ≤850 | 90 | |
| TDMGT3400 | 3—5 | 3—5 | ≤850 | 110 | |
| TDMGT3600 | 3—5 | 3—5 | ≤850 | 150 | |
| TDMGT4000 | 3—5 | 1.5—5 | ≤850 | 190 | |
| TDMGT4200 | 3—5 | 1.5—5 | ≤850 | 200 | |
| TDMGT4500 | 3—5 | 1.5—5 | ≤850 | 260 |
