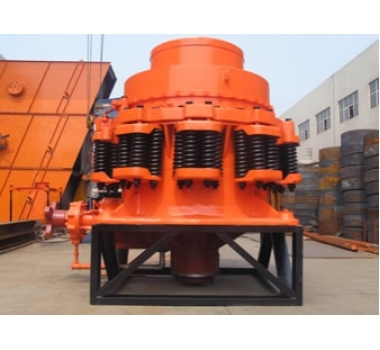

Cone Crusher

Cone Crusher


Applications:Metallurgy, road building and chemical industry;
Advantages: can be used to crushing different size materials; with high efficiency, low energy consumption; compact structure, long service span and less spare parts;

Application Range:/UpFiles/Article/2010/9/24/thumb_2010092433722969.pdf

Applicable Materials:/UpFiles/Article/2010/9/24/thumb_2010092433728469.rar


Cone crusher

Suitable for crushing various kinds of ores and rocks of medium or above medium hardness

Stable structure, high efficiency, easy adjustment, and use economically

The spring safety system of crusher acts as an overloading protection system that allows metals to pass through the crushing chamber so as not to damage the cone crusher

The safety system uses dry oil and water as two kinds of sealed formation to make plaster powder and engine oil separated to make sure reliable performance

The type of crushing chamber depends upon the size of feeding and fineness of the crushed product

The standard type (PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing

Working principle of cone crusher:

Cone crusher crushes materials by the working surface between the movable cone and fixed cone

The movable cone of the cone crusher is supported by spherical bearing and fixed on an hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing

The movable cone and erect shaft are driven by the eccentric shaft sleeve together

The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear, and the wheel of the conveyor belt is driven by motor through v-belts

The lower part of vertical shaft is installed in the eccentric sleeve

When the eccentric sleeve of cone crusher rotates, there is a conical surface lined out by the shaft

When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the cone leaves, grinded materials is discharged from the discharge hole

The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole, consequently the output size is determined

Working Principle

Latest Delivery

Project Case

Technical Parameters


Max. input (mm) Adjusting range of output (mm) capacity (t/h) Electric motor power (kw) weight (T) Overall dimensions (LWH)(mm)
PYB 600 65 15-25 40 30 5 2800*1300*1700
PYD 35 3-13 12-23 5.5
PYB 900 115 15-30 50-90 55 10.2 3050*1640*2350
PYZ 60 5-20 20-65 10.2
PYD 40 3-13 15-50 10.3
PYB 1200 145 20-50 110-200 110 24.7 4000*1900*2980
PYZ 100 8-25 50-150 25
PYD 50 3-15 18-105 25.6
PYB 1750 215 25-50 280-480 160 50.3 4870*3800*4192
PYZ 185 10-30 115-320 50.3
PYD 85 5-15 75-230 50.2
PYB 2200 300 30-60 59-1000 280-260 80 5420*4300*4870
PYZ 230 10-30 200-580 80
PYD 100 7-16 120-340 81.4
