Gypsum rotary dryer
Specifications：
This gypsum rotary dryer is used for drying sand, coal, sludge, coal slurry, brown coal, fly ash, gypsum, clay, Kaolin, grain (corn, wheat), mineral powder, slag, iron powder and etc.
Application Range：widely used in building materials, metallurgy, cement and mining industry.
Applicable Materials：various paste materials such as gypsum, paste gypsum, desulfurized gypusm,. phophogypsum, sludge, gypsum slurry and etc.
Reasonble design and structure
There is a vertical preheater added at the kiln tail, which can transfer flue gas with about 900 degree directly to limestone.
Occupy less area and save space
The length reduction can not only reduce heat loss, but also reduce covering area of equipment.
High automatic level
The whole gypsum production line holds advantages of high level automation and centralized control.
Flexible heat source option
External heating system can apply coal, wood or electricity as fuel;

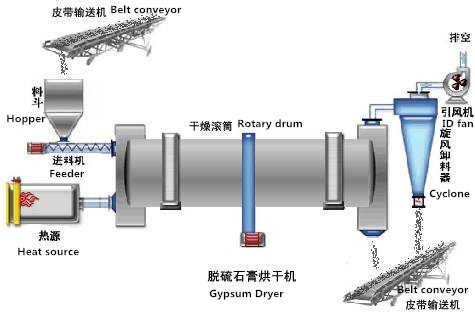

Working Principle
Latest Delivery
Project Case
Henan 10TPH Dry Mortar Production Line
Attracted by triple-pass dryer manufactured by china famous rotary kiln manufacturer, Zhengzhou Taida, Henan construction material customer purchased a whole set of silica sand triple-pass dryer to fulfill final production aim. The picture shown above presents the real working condition of Taida lime rotary kiln.
Raw material: dry mortar
Output capacity：10T/H
20TPD Qatar Sand Production Site
Energy-saving triple-pass dryer is suitable to deal with various mineral materials such as silica, sand, ore poweder and etc. Although the moisture of sand is not high, it is difficult to reduce the inner water in it. Based on customer's real situation, we customized a whole set of sand triple-pass drying system. After arriving, we arrange professional engineer to guide installation for customer.
Raw material：sand
Output capacity：20T/D
Technical Parameters
| Model（mm） | Inclination （%） | Rotary speed（r/min) | Max inlet temperature （℃） | Power （KW） | Capacity （t/h） |
| TDMGT600 | 3—5 | 3—8 | ≤850 | 3 | Capacity will be different for different materials. |
| TDMGT800 | 3—5 | 3—8 | ≤850 | 4 | |
| TDMGT1000 | 3—5 | 3—8 | ≤850 | 5.5 | |
| TDMGT1200 | 3—5 | 3—8 | ≤850 | 11 | |
| TDMGT1500 | 3—5 | 3—8 | ≤850 | 15 | |
| TDMGT1800 | 3—5 | 3—8 | ≤850 | 18.5 | |
| TDMGT2000 | 3—5 | 3—8 | ≤850 | 22 | |
| TDMGT2200 | 3—5 | 3—8 | ≤850 | 30 | |
| TDMGT2400 | 3—5 | 3—5 | ≤850 | 37 | |
| TDMGT2600 | 3—5 | 3—5 | ≤850 | 40 | |
| TDMGT2800 | 3—5 | 3—5 | ≤850 | 55 | |
| TDMGT3000 | 3—5 | 3—5 | ≤850 | 75 | |
| TDMGT3200 | 3—5 | 3—5 | ≤850 | 90 | |
| TDMGT3400 | 3—5 | 3—5 | ≤850 | 110 | |
| TDMGT3600 | 3—5 | 3—5 | ≤850 | 150 | |
| TDMGT4000 | 3—5 | 1.5—5 | ≤850 | 190 | |
| TDMGT4200 | 3—5 | 1.5—5 | ≤850 | 200 | |
| TDMGT4500 | 3—5 | 1.5—5 | ≤850 | 260 |
Applicable Materials

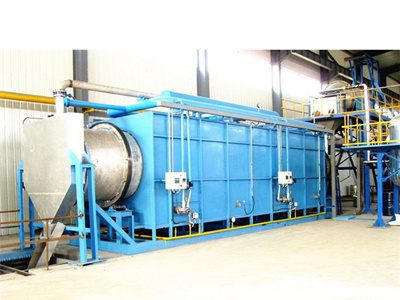

External Heating Kiln
