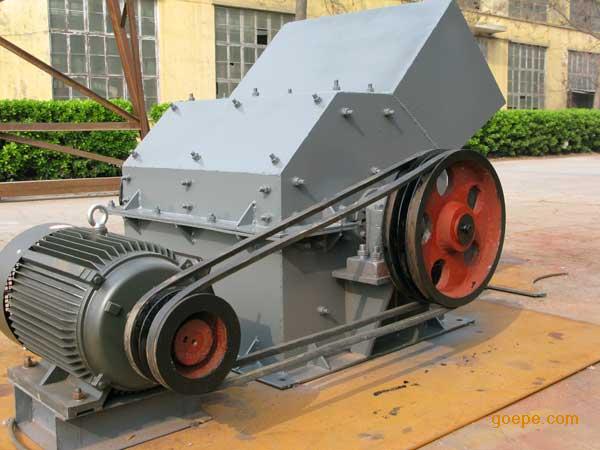

Hammer Crusher

Hammer Crusher

Specifications:

Applications: cement, chemical industry and metallurgy industry;
Structure: mainly consists of upper shell, lower shell, rotor, lining plate and screen plate;
Advantages: great production capacity, good shape of final products;

Application Range:/UpFiles/Article/2010/9/26/thumb_2010092634350705.pdf

Applicable Materials:/UpFiles/Article/2010/9/26/thumb_2010092634368249.rar

Advantages

Hammer crusher (hammer mill)

Crushes by the collisions between high-speed hammer and materials

Simple structure, high reduction ration, and high efficiency

The PC hammer crusher (hammer mill) were developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum and chemical industries

Operating principle of hammer crusher:

The motor drives the rotor rotate of the hammer crusher at a high speed through the belt, and on the rotor there are series hammers

When the materials get into the working area of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being re-crushed until they reached the required size

Working Principle

Latest Delivery

Project Case

Technical Parameters




type
Work rotor diameter(mm) Rotor speed (r.p.m.) Material Inlet size(mm) In size (mm) Out size (mm) Output (t/h) Motorpower (kw) Weight (t) Overall size (mm)
PC-42 φ400/175 1000 145×270 50 3 0.5 5.5 0.5 812×1056×1315
PC-44 φ400/400 1500 145×450 100 10 5-8 7.5 0.9 744×942×878
PC-64 φ600/400 1000 295×450 100 15 10-12 18.5 1.03 1054×972×1117
PC-66 φ600/600 1000 295×570 100 10 12-18 45 2.14 1315×840×1501
PC-86 φ800/600 1000 350×570 200 10 20-25 55 2.45 1515×2586×1040
PC-88 φ800/800 1000 350×850 200 15 35-45 55 3.05 1515×2831×1040
PC-108 φ1000/800 1000 580×850 200 13 25-40 110 6.5 3206×2210×1515
PC-1010 φ1000/1000 1000 580×1060 200 15 40-60 132 7.59 3514×2230×1516
PC-1010 φ1000/1000 1000 580×1060 200 10 30-50 160 7.59 3514×2230×1518
PC-1010 φ1000/1000 1000 580×1060 200 8 25-35 185 7.59 3514×2230×1518
PC-1212 φ1250/1250 750 650×1330 200 20 90-110 185 19.1 4475×3162×2250
PC-1414 φ1400/1400 750 1050×1540 250 20 120-170 280 17.2 2790×2800×2310
PC-1616 φ1600/1600 590 1200×1740 250 20 220-280 500 32.4 6256×3620×2700
