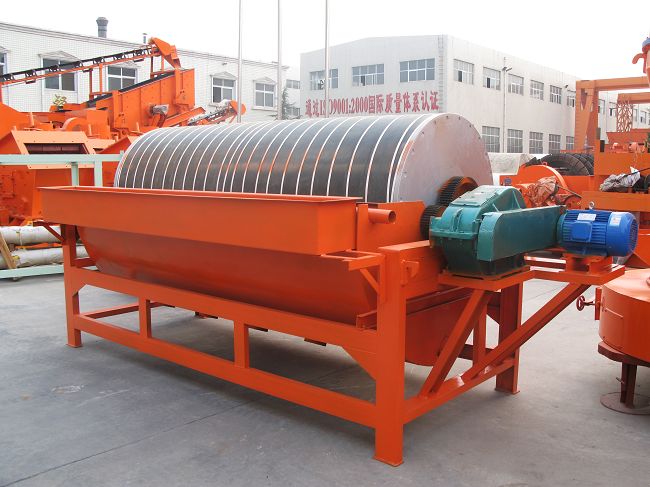

Magnetic Separator
Specifications：
Applications: widely applied resource recycling, wood industry, ore industry, chemical industry and food industry; purifying industrial water and domestic water;
Advantages: high efficiency, low cost, easy maintenance, high production capacity;
Application Range：/UpFiles/Article/2010/9/30/thumb_2010093032487469.pdf
Applicable Materials：/UpFiles/Article/2010/9/30/thumb_2010093032493923.rar
The magnetic separator can separate raw materials with different magnetic rigidities
The machine works under the magnetic force and machine force
Magnetic separators are designed to recover ferromagnetic materials
The separators are available in designs and sizes to provide solutions for all applications
The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency
The magnetic separators are available in cyclic design with process vessel diameters smaller than 3mm
Magnetic separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, ilmenite, and tantalum-niobium, and more
In recent years, it is also more and more applied in purifying quartz, feldspar and nepheline
Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water
Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix
It possesses the following advantages: short magnetic circuit, little magnetic flux leakage, high magnetic intensity, low energy consumption, fine beneficiary results, simple structure and easy to maintain
Working Principle
Latest Delivery
Project Case
Technical Parameters
|
Model |
Shell diameter(mm) | Shell length(mm) | Shell rotation speed(r/min) | Feeding size(mm) | Processing capacity(t/h) | Power(kw) |
| CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
