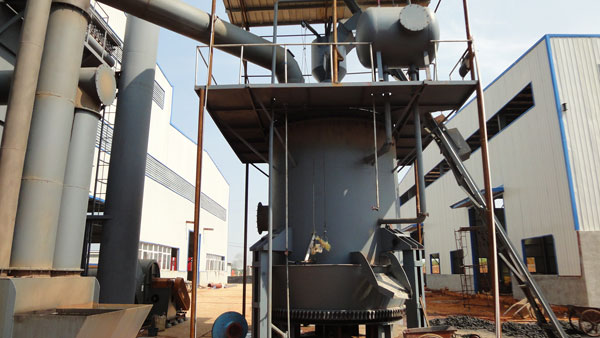

Qm-2 Coal Gasifier

Qm-2 Coal Gasifier


Features: good heat transfer effect, simple structure, easy maintenance; high automatic level, less noise;
Composition: distilling stage and gasification stage;

Application Range:/UpFiles/Article/2010/9/21/thumb_2010092130278297.pdf

Applicable Materials:/UpFiles/Article/2010/9/21/thumb_2010092130285861.rar


Coal gasifiers series

A new generation of intelligent high-effect environment-friendly products put forward by our company, which have developed from and taken good advantage of dry-type ash-disposal coal furnace , in which patent deslagging structure is use

Characteristics: special ash pan, furnace wall always protected by slags, strong effect of slag damaging, slag loosing and ventilation, disposing fundamentally the concept that gas furnace is the same as pressure vessel, heating temperature auto-controlled

Widely used in the environment-friendly and energy-saving technological renovation of gas-processing heating furnace, gas forging furnace, gas crucible furnace, gas mold furnace, grilled ladle gas furnace, sand resin heating gas regenerater, glass melting gas furnace, ceramic gas furnace, as well as smoke exhausting refractory kiln and tunnel kiln

Convent to remove slags: QM-2 wet-type slag removing coal classifier series if placed on ground level, ashes can be disposed conveniently, and humane operation is guaranteed

Applying to continual and cyclical manufacturing at the same time 24 hours a day of continuous work, without stopping to remove slags a Java-air distribution, once-and-for-all air distribution

Easy to operate: coal adding time by the temperature degree indication at the gas exit, needless of operation experience

Long service time: a unique pagoda-style heat-resistant cast iron furnace grate with once-and-for-all air distribution at the same time cooling the grate, the temperature of which maintained at between 150 and 25℃and the service time of the grate largely extended

Maintenance easy: all the components of the furnace body are weld parts, so one welder is enough to complete furnace maintenance on the spot and the repairing time is short if a hole is reserved in advance from which the repairman can enter conveniently, all the repair work can be done inside without dismantling the body and 8 hours is enough to finish the all maintenance tasks which will not affect the peak production

Safer to use: safety is the lifeline of the enterprise, so the safety of the equipment chosen has been paid closest attention at all the slag removing places of QM-2 coal grasifier, extensive waterseal explosion preventing grooves are set pervasively at the time of pressure rising, the pressure can be released in time and the explosion protection is delicate and effective

This is the first safety control

The second safety control is dedicated gas releasing and exhausting equipment, which should be opened when the furnace stops in order to exhaust the gas gathered in the main pipe and prevent the gas from being sucked back into the bore to explode when meeting fire

Uniform combustion: it has strong ability to break slags, which drop evenly along the circle of the slag pan, coal layers move downwards and does not lead to uneven coal burning as a result of the uneven seam density of coal

Uniform coal distribution: at the coal adding place spacing devices were installed to prevent the cone valve from deviating resulting in uneven coal burning

Special pagoda-type grate ventilation system, with more uniform air distribution, more uniform and thorough combustion, direct combination of vapor acting as gas agent with air, vapor used more completely and classification rate improved more efficiently to over 90%.

Working Principle

Latest Delivery

Project Case

Technical Parameters

name  unit  specifcations
diameter  mm 1600 1800 2000 2400 2600 3000 3200
cross section area  m2 2 2.54 3.14 4.52 5.31 7.07 8.04
height of fuel  mm 1000 1000 1000 1000 1000 1000 1000
height of fire mm 100~300
height of ash layer mm 100~300
fuel available anthracite, bitumite and coke with no adhesion
size of fuel mm 13~25 25~50
 fuel consumption  Kg/h 350~460 500~600 500~720 700~1040 850~1200 1700~2000 1800~2200
gasification agent   air and steam
gasification capacity Nm3/h 1200~1600 1500~2100 1750~2500 2500~3600 3000~4300 6000~7000 6500~7500
rotary speed of ash pan r/h 3.5 3.5 2.23 2 1.7 1.7 1.7
thermal value of coal gas  KJ/Nm3 5020~5670
temperature at outlet  400~550
pressure at outlet  Pa 980~1470 1470-1960
blast pressure  Pa <4000 <6000
saturation air temperature  50-65
working pressure of water jacket  Pa <100Kpa <294Kpa
pressure of fire detecting hole Pa <100Kpa <294Kpa
motor of driving motor  KW 4 5.5
motor of elevator's motor  KW 1.5 3
weight  T 12 15 19 24 28 42 45
