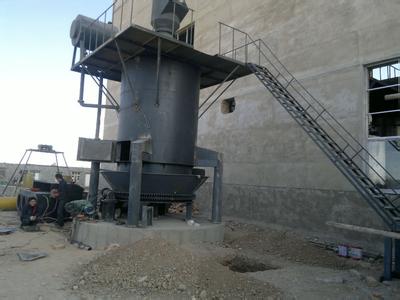

Qm-3 Coal Gasifier
Specifications：
Features: good heat transfer effect, simple structure, easy maintenance; high automatic level, less noise;
Composition: distilling stage and gasification stage;
Application Range：/UpFiles/Article/2010/9/21/thumb_2010092130876797.pdf
Applicable Materials：/UpFiles/Article/2010/9/21/thumb_2010092130883001.rar
A new type of highly efficient, energy-saving, and environment-friendly products, which were developed independently by our company
Energy-saving and environment-friendly:
The calories of reburning 1kg satandardized coal equals to that of 0.6kg gasoline, 0.3kg liquefied petroleum gas and 6.5 degrees of electricity
The smoke emission complies with the GB9078-96 environment-friendly standard
Our company can design and produce air heating furnace according to users' requirement
We also undertake the renovation of all kinds of oil fuel, natural gas, coal fuel and electric air heating furnace with the heating cost 70% less than electricity, 40 to 60% oil, 30% gas
Reciprocating grate cleaner: strong ability to break and loosen slags as well as to ventilate with slim chance of slagbonding
Special ash grate design: grate protected by low-temperature slags to prolong the grate's service time largely
Extensive waterseal explosion preventing grooves at the part of ash hopper: apt to react and safe to use
Combination of air producing and other heating equipment: convenient to control temperature
Gas produced immediately by burning coal when it is needed: needless to remove ash, reduce temperature or add pressure, with the manufacturing cost largely reduced
Fuel adding and slag removing operated by machines: centralized-control, easy to handle and low labor intensity
Convenient installation: installed on ordinary ground, special ground unwanted
Flexibility assorted with varieties of other heating equipment: widely used in the environment-friendly and energy-saving technological renovation of gas-processing heating furnace, gas forging furnace, gas crucible furnace, gas mold furnace, grilled ladle gas furnace, sand resin heating gas regenerates, glass melting gas furnace, ceramic gas furnace and the technological renovation of gas corhart smoke exhausting kiln and tunnel kiln, as well as the assorted heating source renovation of drying, burning and heating equipment whose temperature requirement is below 1,350℃
Working Principle
Latest Delivery
Project Case
Technical Parameters
| name | unit | specifcations | ||||||
| diameter | mm | 1600 | 1800 | 2000 | 2400 | 2600 | 3000 | 3200 |
| cross section area | m2 | 2 | 2.54 | 3.14 | 4.52 | 5.31 | 7.07 | 8.04 |
| height of fuel | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| height of fire | mm | 100～300 | ||||||
| height of ash layer | mm | 100～300 | ||||||
| fuel available | anthracite, bitumite and coke with no adhesion | |||||||
| size of fuel | mm | 13～25 25～50 | ||||||
| fuel consumption | Kg/h | 350～460 | 500～600 | 500～720 | 700～1040 | 850～1200 | 1700～2000 | 1800～2200 |
| gasification agent | air and steam | |||||||
| gasification capacity | Nm3/h | 1200～1600 | 1500～2100 | 1750～2500 | 2500～3600 | 3000～4300 | 6000～7000 | 6500～7500 |
| rotary speed of ash pan | r/h | 3.5 | 3.5 | 2.23 | 2 | 1.7 | 1.7 | 1.7 |
| thermal value of coal gas | KJ/Nm3 | 5020～5670 | ||||||
| temperature at outlet | ℃ | 400～550 | ||||||
| pressure at outlet | Pa | 980～1470 | 1470-1960 | |||||
| blast pressure | Pa | <4000 | <6000 | |||||
| saturation air temperature | ℃ | 50-65 | ||||||
| working pressure of water jacket | Pa | <100Kpa | <294Kpa | |||||
| pressure of fire detecting hole | Pa | <100Kpa | <294Kpa | |||||
| motor of driving motor | KW | 4 | 5.5 | |||||
| motor of elevator's motor | KW | 1.5 | 3 | |||||
| weight | T | 12 | 15 | 19 | 24 | 28 | 42 | 45 |
