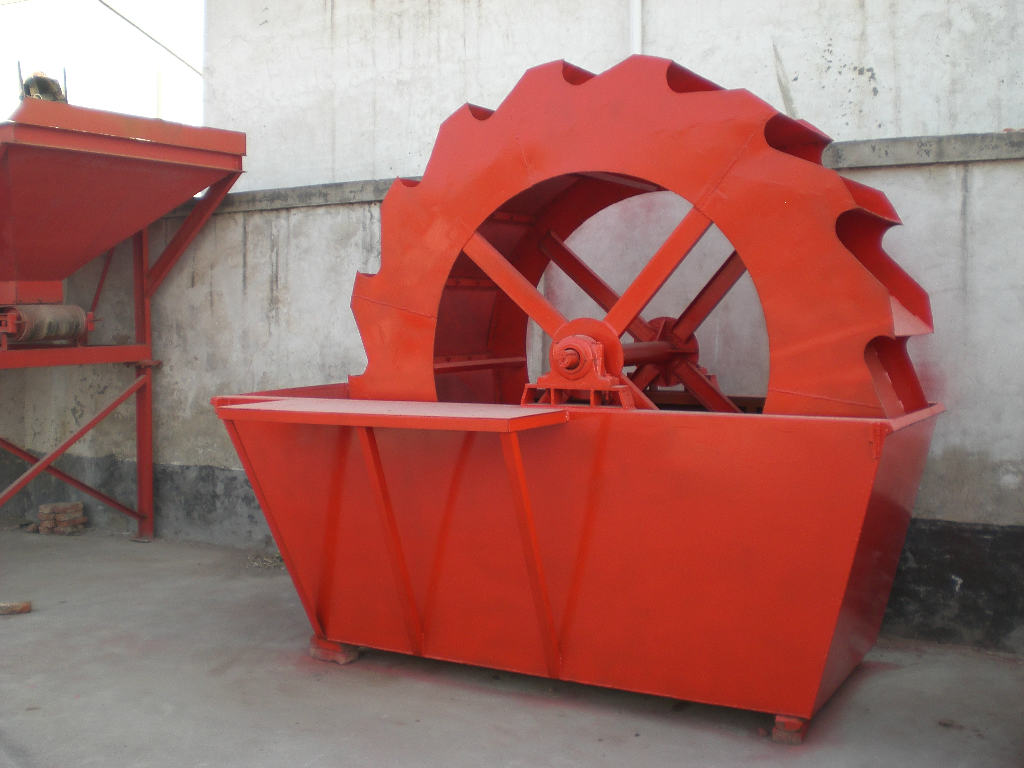

Sand washing machine

Sand washing machine


Applications: widely applied to sand washing plant, mining building materials, traffic and chemical industry;
Types: XS type and XL type
Features: simple structure, long life span and less maintenance;

Application Range:/UpFiles/Article/2010/10/7/thumb_2010100739718141.pdf

Applicable Materials:/UpFiles/Article/2010/10/7/thumb_2010100739730893.rar


Sand washing machine:

This series XSD Sand Washing Machines are a kind of water washing style equipment to be matched with the sand making machine and can reduce the dust and stone powder which mixes with the final sand, so sand making machine can improve the quality of the sand, XSD series sand making machine is used in building plant, quarry, concrete plant, dam building, casting-70 sand, glass factory’s quartz sand and refilling pressure sand

Working principle of sand washing machine:

The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel, the sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other, the impurity covering the sand is washing away, at the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder, through the above process, the washing function is finished, the clean sand and stone is lift up by vane, when it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder, on one hand, water is removed from the sand and stone, on the other hand, the water can be fully used, finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task

Characteristics of sand washing machine:

Reasonable structure, large capacity, low consumption, little loss of the sand during the washing process, low failure rate


Working Principle

Latest Delivery

Project Case

Technical Parameters


Wheel Size (mm) Max feed size (mm) Power (Kw) Weight (t) Capacity (t/h) Overall dimension (mm)
XSD2610 Φ2600×1000 10 5.5 2.7 20-60 3255×1982×2690
XSD2816 Φ2800×1600 10 11 3 50-100 3540×3000×2880
XSD3016 Φ3000×1600 10 15 3.3 70-120 3845×3000×3080
