Small-sized Rotary Kiln
Specifications：
According to heating modes, small sized rotary calcining kiln can be divided into two types, hot anaerobic type and internal heating type.
Application Range：Can be applied to chemical industry, metallurgy and mining fields.
Applicable Materials：With cooperation of Taida environment friendly systems, small-sized rotary kiln can also be used to calcining wastes and sludge.
Low energy consumption
Our rotary kiln adopts reasonble running parameter; coal and electricity consumption can be 20% to 30% lower than common dryer.
High output capacity
Output capacity can be increased by more than 20%. Taida rotary kiln has been widely applied to mining and metallurgy industry.
With high automation level
The whole production line needs only one person to supervise. finished products can be directly packed and stored.
More durable
Service life can last for 8 to 10 years. with good maintenance, it can be used for longer time.
With less quick-wear parts and less occupation area
Important parts adopt advanced thermal processing technology. Replace period can reach 5000 hours.
More environment friendly
Adopts multi-class dust collecting method, clean exhaust gas emission can totally meet national standard.

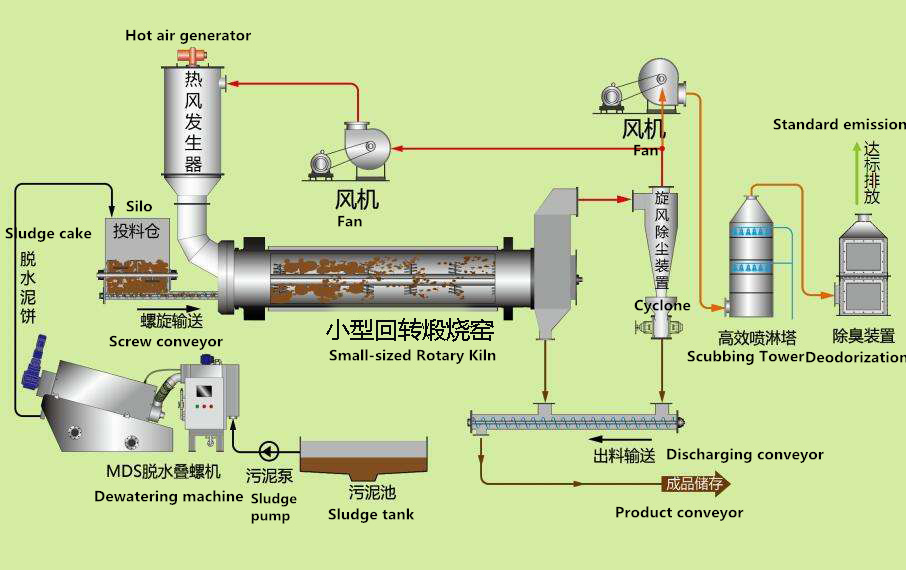

Working Principle
Latest Delivery
Project Case
Egypt 5TPD Domestic Sludge Calcining Site
Customer from Egypt got to know our company is a very professional rotary kiln manufacturer. Commonly used method is landfill which will caused much pollution to surrounding environment and wastes plow land. through prevoius communication, customer visited our factory and we did small test run for customer. They are greatly impressed by good working peformance of Taida rotary kiln.
Raw material: domestic sludge
Output capacity：5T/D
Bahrain Medical Wastes Calcining Kiln Site
Bahrain is a small island located at western shore of Persian Gulf. Local government has very strict requirements for enviroment protection. medical waste is also a problem to be solved urgently. After searching many factories from website, they found us-Zhengzhou Taida, a professional sludge disposal manufacturer. at present, the whole set of wastes calcining kiln is working stably at customer's site.
Raw material：municipal medical wastes
Output capacity：8T/H
Technical Parameters
| Specifications (m) | Overall dimensions | Rotary speed (r/min) | Power (kw) | Notes | ||
| Diameter (m) | Length (m) | Inclination (%) | ||||
| Φ0.6×6 | 0.6 | 6 | 3.5 | 0.5-4 | 3 | Support customization |
| Φ0.6×9 | 0.6 | 9 | 3.5 | 0.5-4 | 3 | ---- |
| Φ0.8×8 | 0.8 | 8 | 3 | 0.35-4 | 4 | Support customization |
| Φ0.8×11 | 0.8 | 11 | 3.5 | 0.35-4 | 4 | ---- |
| Φ1.0×8 | 1 | 8 | 3.5 | 0.35-4 | 5.5 | Support customization |
| Φ1.0×12 | 1 | 12 | 3.5 | 0.35-4 | 5.5 | ---- |
| Φ1.2×8 | 1.2 | 8 | 3.5 | 0.35-4 | 7.5 | Support customization |
| Φ1.2×11 | 1.2 | 11 | 3.5 | 0.35-4 | 7.5 | ---- |
| Φ1.6×8 | 1.6 | 8 | 3.5 | 0.29-4 | 15 | |
| Φ1.6×11 | 1.6 | 11 | 3.5 | 0.29-4 | 15 | ---- |
| Φ1.8×8 | 1.8 | 8 | 3.5 | 0.29-4 | 18.5 | |
| Φ1.8×15 | 1.8 | 15 | 3.5 | 0.29-4 | 18.5 | ---- |
| Φ1.8×20 | 1.8 | 20 | 3.5 | 0.29-4 | 18.5 | Support customization |
Core Equipment
Applicable Materials
Industrial Waste Incineration Kiln
Titanium Dioxide Rotary Kiln
External Heating Kiln
Carbon Regeneration
