Wet Type Rotary Kiln

Wet Type Rotary Kiln


Wet type rotary kiln belongs to construction material equipment which is widely applied to metallurgy, chemical industry and refractory material.

Application Range:mainly applied to metallurgy chemical industry and construction industry;

Applicable Materials:dolomite, kaolin clay, bauxite, refractory furnace charge titanium, cement, limestone, iron powder, vanadium ore, activated carbon, coke, mineral powder, aluminum oxide, magnesium oxide, zinc oxide, etc.


Advanced structure

The kiln head cover of the metallurgical rotary kiln adopts a large volume method, and the structure of the kiln door is opened, so that the air flow is more stable. The kiln head and the end of the kiln are sealed by the sealing form, the structure is simple, the maintenance is convenient, and it is the most advanced seal form at present.

Low failure rate

Metallurgical rotary kiln calcination system equipment through technical innovation. In the system used at home and abroad the most advanced hydraulic wheel stopping device, the measurement precision is very high the metering plunger pump, high precision of speed control valve and contact type graphite block sealing device, etc. the domestic advanced technology, fault in production rate is very low.

Reliable operation

Rotary kiln metallurgical structure is strong, stable operation, kiln products of high quality, and for the user to provide advanced efficient shaft preheater, five stage cyclone preheater.

High output and low energy consumption

Metallurgical rotary kiln is more convenient than traditional equipment, reliable, and with the same equipment specifications, operating rate increased by 10%, production increased by 5%-10%, heat consumption decreased by 15%.

Working Principle

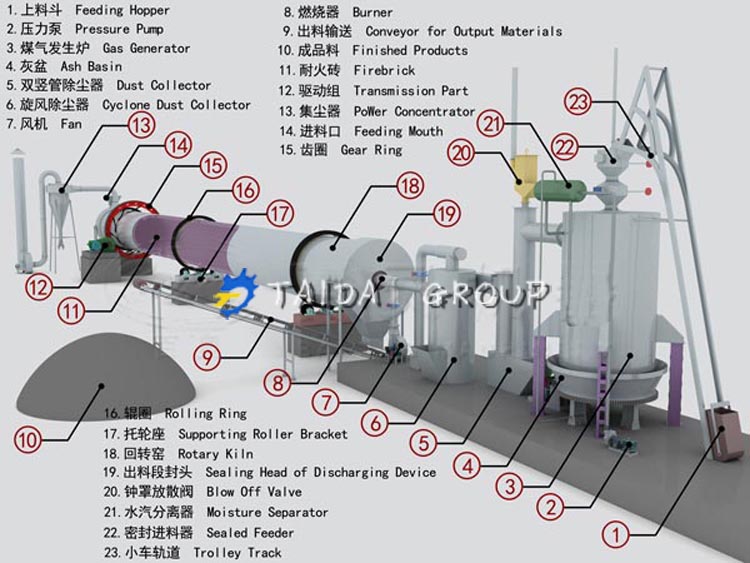

rotary kiln working principle

Latest Delivery

Project Case

Technical Parameters

Specification(m) Φ3.1/2.5×78 Φ3×88 Φ3×100 Φ3.3×118 Φ3.3×125 Φ3.5×145
Output capacity(T/D) 240 384 300 400 400 700
Inclination(%) 3.5 3.5 4 3.5 3.5 3.5
Supports No. 4 5 5 6 6 6
Catch wheel type       Hydraulic  Hydraulic  Hydraulic
Rotary speed Main drive(r/m) 0.5-1.5 -1.74 -1.74 -1.45 -1.45 -1.38
Auxiliary drive(r/h) 2.85 3.24 3.26 3.26 3.26 2.6
Main drive Motor  Model  ZSN-280-11 YSP315M-6 ZSN4-280-091B ZSN4-315-071 ZSN4-315-091 ZSN4-250-21B
Rate power(kw) 90 90 110 125 160 90×2
Adjustable range(r/m) 20-170 1000 1000 -750 750 1000
Rated voltage(V) 440 380 440 440 440 440
Reducer  Model  ZSY500-63 YSY1110-711 ZSY560 ZSY630- ZSY630 Zsy165-3-I/II
Gear ratio 64.327 71 71 80 80 64.3
Auxiliary drive  Motor Model Y160L-6 Y160L-6 Y160L-6 Y180L-6 Y180L-6 Y160M-6
Rated power(kw) 11 11 11 15 15 7.5×2
Adjustable range(r/m) 970 970 970 970 960 960
Rated voltage(v) 380 380 380 440 380 380
Reducer Model ZL50 ZL50-14-II ZL50-14 ZL60-14 ZL60-14 ZL42.5-14
Gear ratio 64.327 31.16 31.16 31.16 31.16 30.53
Total weight (exclude refractory bricks)(t) 370 390 530 840 818 916
